General Purpose Headwall

Manufactured in GRC (Glass Reinforced Concrete) and provided with a unique anchorage system, JKH’s General Purpose Headwalls are versatile, lightweight solutions designed for efficient drainage in various settings.

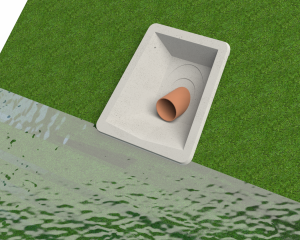

The Small General Purpose Headwall is ideal for 90mm pipes, with knockout options for 125mm and 190mm diameters, and weighs approximately 11.5kg. This headwall is particularly useful in locations with a batter angle of at least 45 degrees. The Large General Purpose Headwall, weighing around 25kg, accommodates 200mm pipes with knockout options for 300mm and 360mm diameters, suitable for minor watercourses with moderate flow rates.

Additionally, hinged galvanized steel grates are available for all GRC headwalls, with optional pipe-mounted vermin gates upon request.

Standard Stock Item – Delivery 3-5 working days

request quotation

Resources & downloads.

General-Purpose-Grating-JKH

Type:pdf

Filesize:117.57 KB

Download

Large-General-Purpose-Grating-JKH

Type:pdf

Filesize:130.21 KB

Download

Product information.

KEY features.

Lightweight, manufactured in Glass Reinforced Concrete (GRC)
Faster, cheaper and safer than casting on site,
Provided with a unique anchorage system
Optional extras: Hinged galvanized steel grates and pipe-mounted vermin gates available upon request.
Coloured concrete and powder coated steelwork options available

need technical drawings?

BIM files / CAD Drawings.

Are you an architect needing to access BIM files or CAD Drawings? If so, register to access our design portal with over 300,000 designs and technical drawings.

Request today

installation guide

expert tips and best practices.

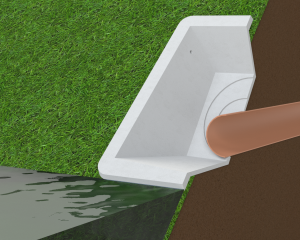

Dig out sufficiently to allow the headwall flanges to finish flush with the batter. Take the outfall pipe (minimum length 1.5m of rigid impervious pipe) and slide it though the headwall so that it protrudes approximately 50mm. Make a good connection with the land drain and seal by returning approximately 150mm of soil into the trench and consolidating. Unravel the string and draw the anchor back along the trench as the rest of the backfilling is completed.
